IAPUNIT – Development of an innovative auxiliary power unit for military purposes based on high-temperature PEM fuel cell and reforming technology for military logistic fuels

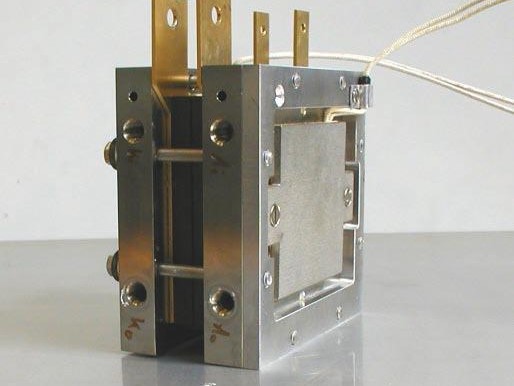

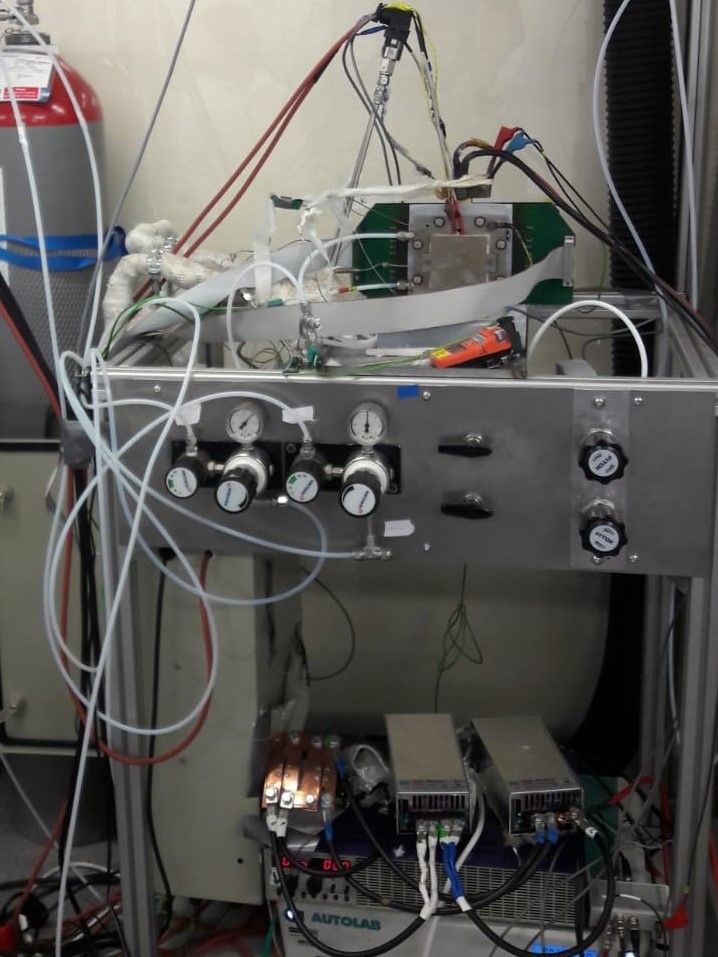

The project concerns the development of a silent power solution with a low IR-signature for the energy supply of military land vehicles. An inline desulphurisation unit based on the industrial hydrodesulphurisation (HDS) process will be developed. The resulting fuel will then be fed into an autothermal reformer (ATR). Afterwards it is converted into hydrogen-rich fuel by a two-stage water-gas-shift reaction (WGS). The gas obtained is now transferred to the anode of the HT-PEM fuel cell. Long-term tests and start-stop cycles with hydrogen with impurities (carbon monoxide and hydrogen sulphide) are carried out. The influence of impurities is investigated by regularly recording a polarization curve and additional electrochemical impedance spectroscopy. Within these tests, limits for the tolerance of the cell against the investigated impurities shall be determined so that requirements for the fuel processor can be given.



Involved Organizations

  • Frauenhofer Gesellschaft – Institute for Chemical Technology
  • AVL List GmbH
  • Catator AB
  • National Institute of chemistry (SI)
  • Jozef Stefan Institute (SI)
  • Eindhoven University of Technology

Acknowledgement

Financial support by the Armaments and Defence Technology Agency – Austrian Armed forces (Republic of Austria)

Contact
image/svg+xml
Viktor Hacker
Assoc.Prof. Dipl.-Ing. Dr.techn.

Institut für Chemische Verfahrenstechnik und Umwelttechnik
Inffeldgasse 25/C/IV
8010 Graz

Phone
+43 316 873 - 8780
Mobile
+43 660 316 8812
Fax
+43 316 873 - 108780
Members
image/svg+xml
Andrea Nina Jany
Dipl.-Ing. BSc

Duration
image/svg+xml

02/2019 – 10/2020
